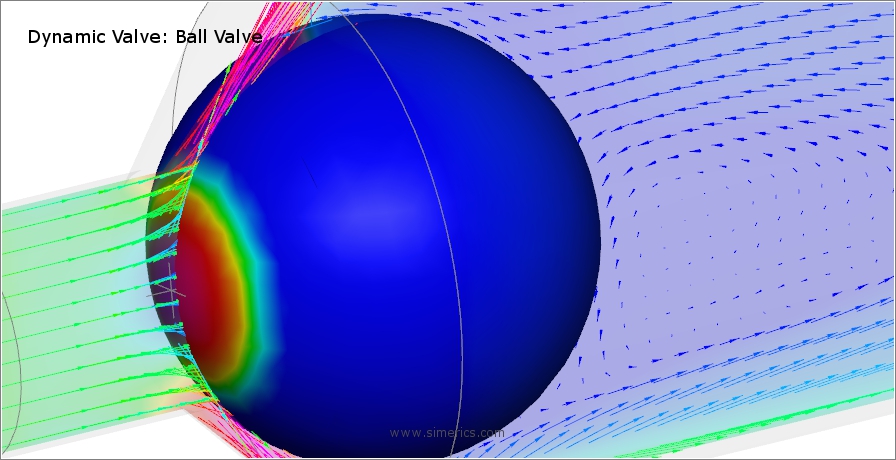

Check Valve (Ball):
Simerics-MP+ is used to predict the cracking pressure, flow-rates, valve dynamics, valve loss coefficient, valve loads and cavitation damage in valves. Speed enables full transient simulations. (Testimonial)
White Papers:
Predicting Damage
Analyzing Noise and Vibration
Related Videos :
Frac Pump with Valves
Gear Pump with a Pressure Relief Valve
Discriminators:
- Dynamics based on pressures, spring forces, and mass
- Models both free and dissolved gases
- Models Cavitation
- Closure model for tight seals
- Speed enables the inclusion of other valves and components
- Can include complex features and tight clearances
- Can accommodate high pressure drops across the valve
- Ease-of-use
Design Issues/Benefits:
- Predict valve dynamics
- Predict flow-rates
- Determine the effects of aeration and cavitation
- Analyze & avoid damage
- Predict loads
- Reduce pressure ripple and noise
